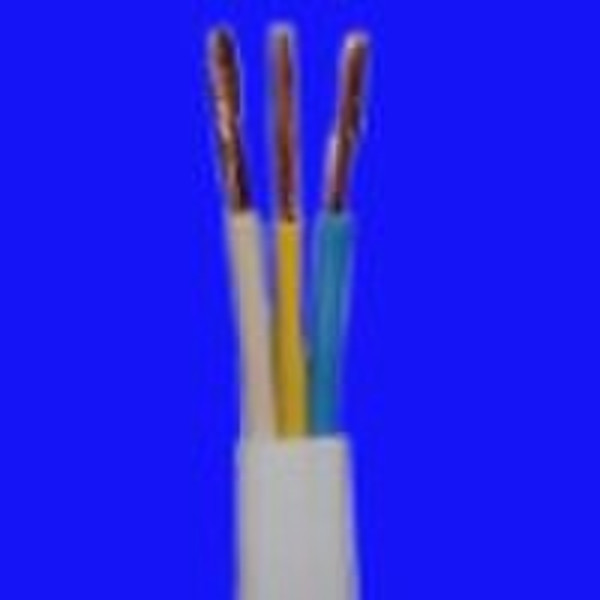

electrical wires

Brief Introduction of PVC insulated flexible wires. 1.Applications:450/750V and below are mainly applied for house wiring of electrical appliances, electric apparatus, instruments, telecommunication equipment, power lighting, and buildings with the rated AC voltage of 500V or DC 1000V. 2. Serial Characteristics. A. The highest temperature of the conductor is 70º C for the normal service of products such as BV, RV, RVV, BVV, VGV. B. The long, allowable working temperature for wiring wires & cables such as BV, BLV, BVR, BVVB, BLVVB should not be over 70º C. 3. Installation conditions of our products. The temperature in laying cables should not be below 0º C. If the overall diameter(D) of cables is below 25mm, the allowable bending radius of cables should be 4D or above; If the overall diameter (D) of cables is 25mm or above, Specification Size and Technical Data Type Nominal Section(mm²) Core Structure No./Dia.(mm) RVP RVB RVS RFB RFS 0.2 12/0.15 0.3 16/0.15 0.4 23/0.15 0.5 28/0.15 0.75 42/0.15 1 32/0.2 1.5 48/0.2 2.5 77/0.2 4 77/0.26 6 77/0.32
