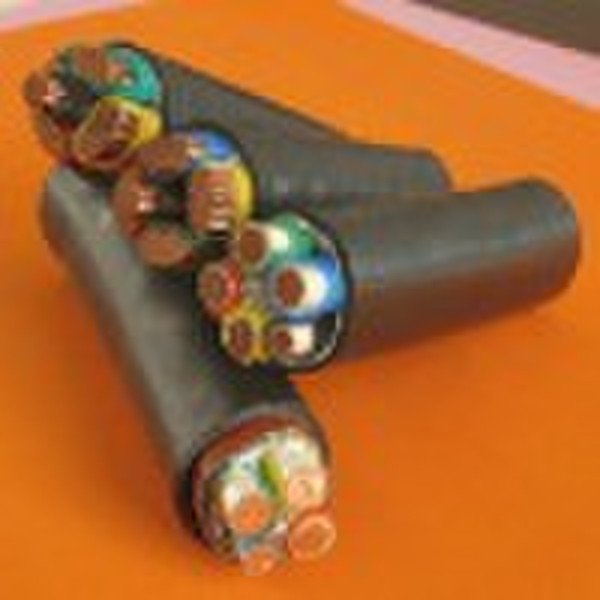

overhead Insulated cable

Specifications Insulated Overhead cable 1,Application Overhead cables applies to rated voltage 0.6/1kV and below by overhead installation. 2,Performance 1.Products based on GB/T12527 standards. 2.Cable soaked in room temperature water (add-electrode), the 3500V withstand voltage test after 1h. 3.Not to extend combustion performance of the cable pass GB2951.19 requirements. 3,Use of properties 1.Rated voltage: U./ U is 0.6/1kV. 2.Conductor of cable to allow the maximum long-term working temperature: XLPE insulated 90 °C. 3.Cable laying temperature should not be less than-20°C 4.The minimum bending radius of cable Cable outer diameter (D) is less than 25mm shall be not less than 4D.Cable outer diameter (D) for the 25mm and above, shall be not less than 6D 4,Model, description, main use ModelDescriptionMain use JKYJ--0.6/1Rated voltage 0.6/1kV copper core XLPE insulated overhead cablesLaying overhead of households cite and so on JKLYJ--0.6/1Rated voltage 0.6/1kV Aluminum Core XLPE insulated overhead cablesSpecification Size and technical Data Type JKV,JKLV,JKLYVoltage Grade 1kV and below Nominal Section(mm²) 16,25,35,50,70,95,120,150,185,240 Remark 2*10,2*16,2*25,2*35 etc
